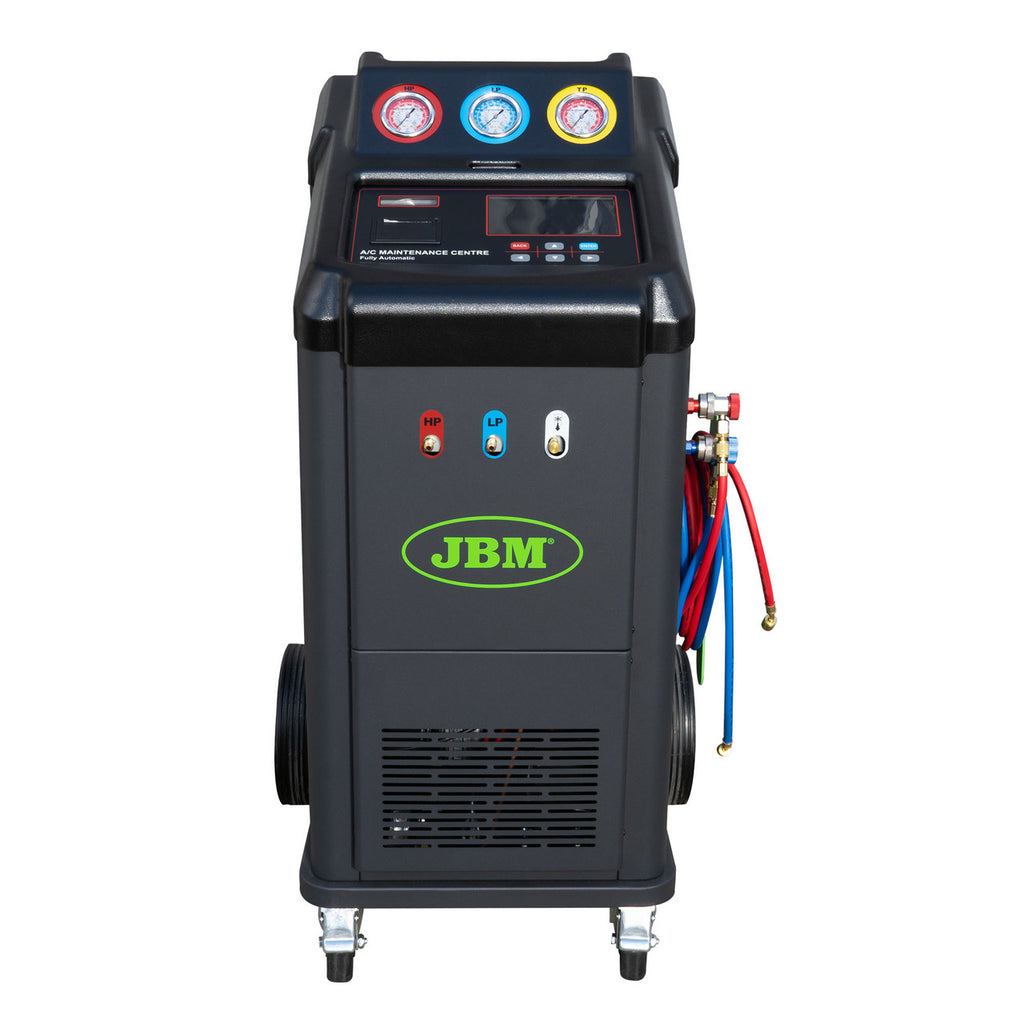

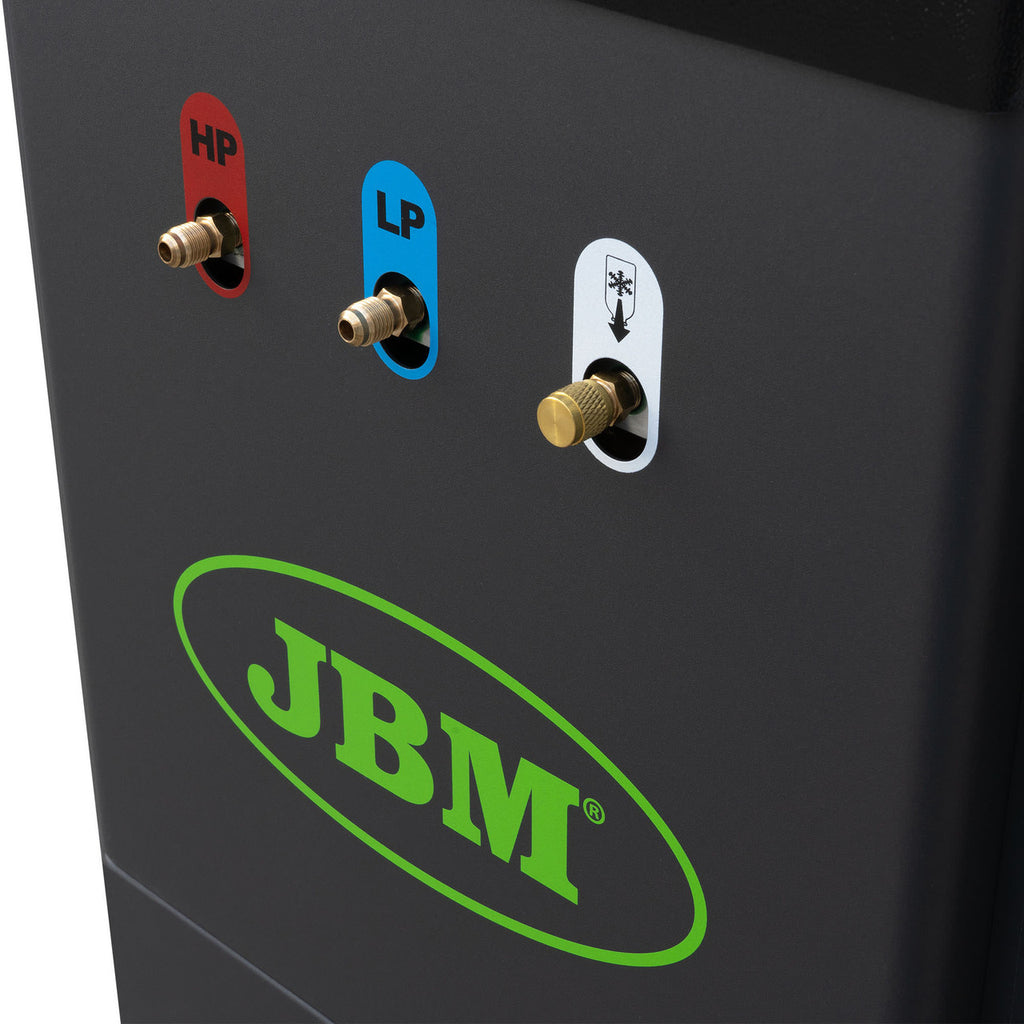

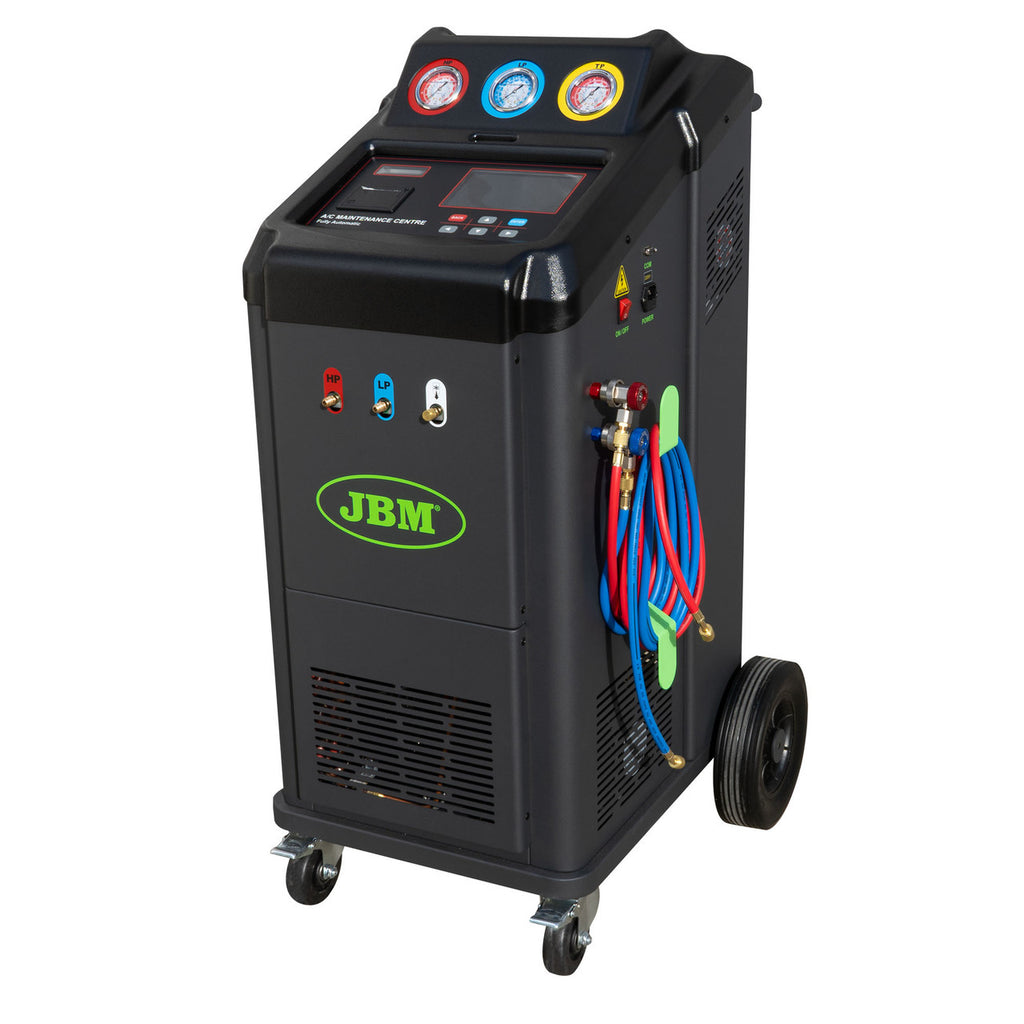

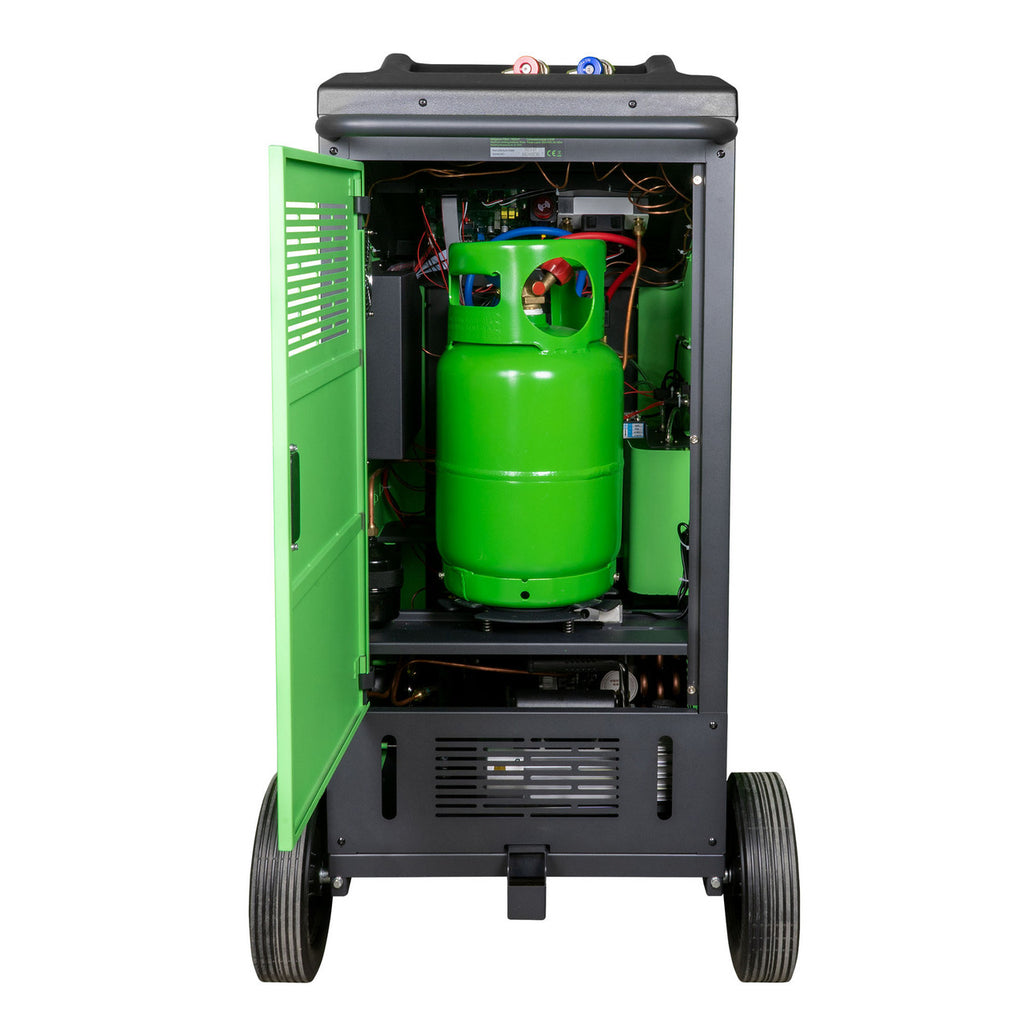

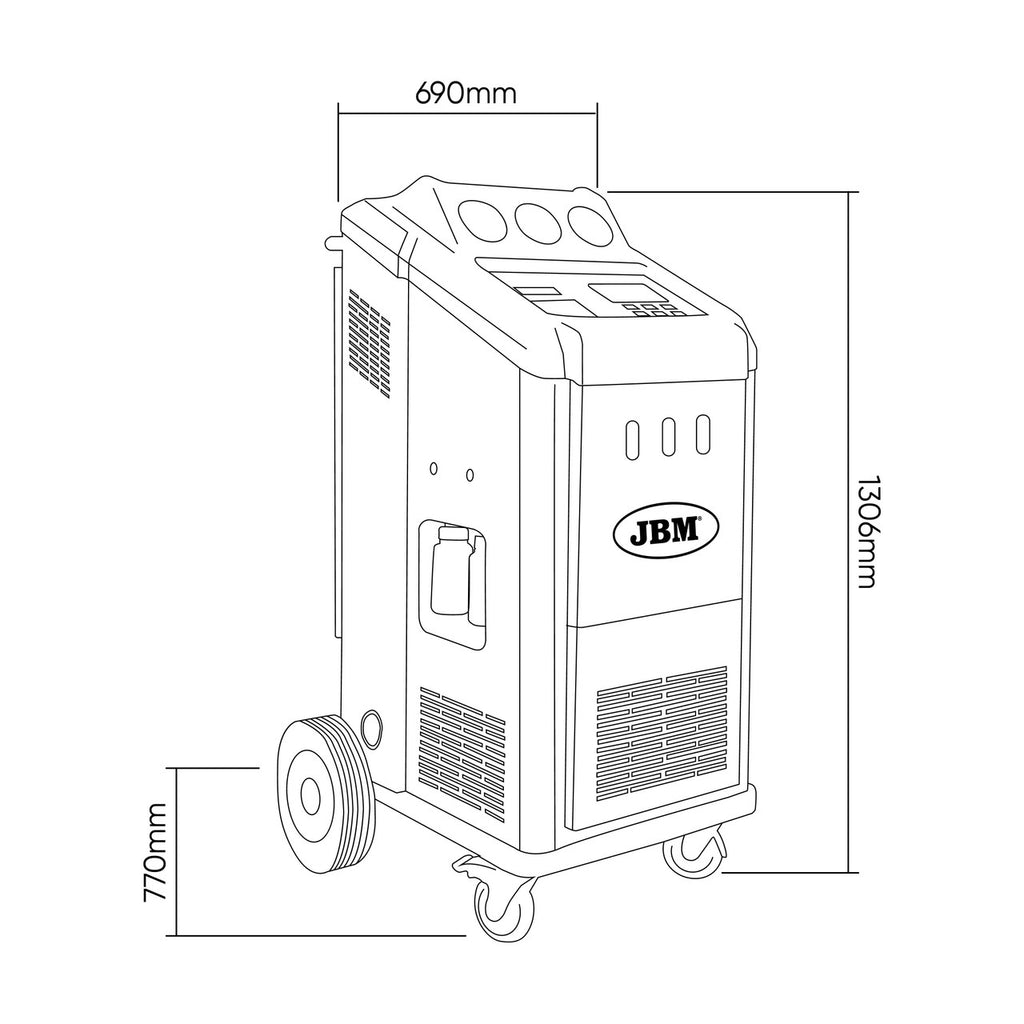

JBM Tools Air Conditioning Charging Machine

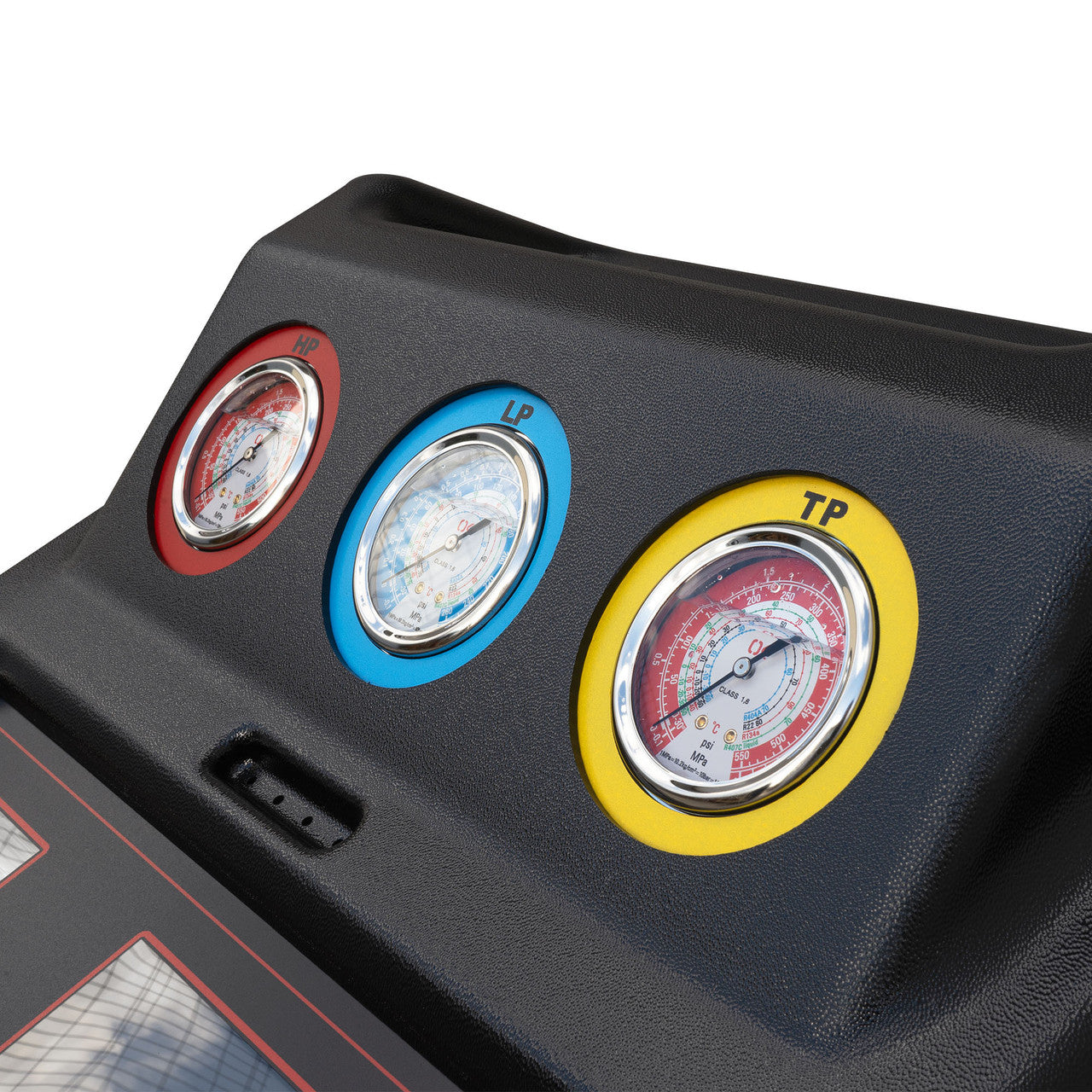

This machine is engineered to streamline various tasks within a vehicle's air conditioning system, including flushing, refrigerant recovery, vacuuming, oil injection, and refrigerant recharging. Its fully automatic operation eliminates the need for constant monitoring, as it executes all processes seamlessly once the configuration parameters are set. Compatible with R134a and R1234yf refrigerants, this machine features a built-in printer for certifying completed work. Its standout features include its fully automatic functionality, user-friendly operation, large-size inspection tube with LED backlighting, and vertically installed gauges, allowing operators to observe pressure parameters even from within the car. With a high recycling rate for both gas and oil, this machine boasts a large LCD screen, database, and printer for documentation purposes. Additionally, its program and database can be easily updated for enhanced functionality.

Technical Specifications:

- Refrigerant Types: R134A / R1234YF

- Compressor Power: 3/8 HP

- Compressor Capacity: 12.12cm³

- Vacuum Pump Power: 180W

- Coolant Recovery Speed: 450g/min (GAS), 800g/min (LIQUID)

- Percentage of Recovery: 99%

- Coolant Charge Speed: >2 Kg/min

- Vacuum Pump Capacity: 100l/min

- Refrigerant Tank Capacity: 12L

- New Oil Capacity: 280ml

- Used Oil Capacity: 500ml

- Working Temperature: 10-50°C

- Relative Humidity: 0-85%

- Maximum Working Pressure: 20 BAR

- LCD Display Measurement: 240*128mm

- High Pressure Manometer Range: -1 ~ 35bar

- Low Pressure Manometer Range: -1 ~ 20bar

- Power Supply: 220V±10%, 50/60Hz
